Mercedes M110 12V 2.8L W114/W116/W123/W126 Individual Throttle Body set

£2,355.00

ITB throttle body kit for Mercedes M110 12V 2.8L W114/W116/W123/W126



Mercedes W114/W116/W123/W126 M110 12V 2.7L Individual Throttle Body set

• Cast inlet manifold and ITBs
• Port Injectors and fuel rail included
• Cast curved and tapered extensions
• Spun trumpets
• Optional secondary injection system
• Optional carbon plenum and W114/W116/W123/W126 specific airbox
• Optional front intake airbox, trumpet and filter system

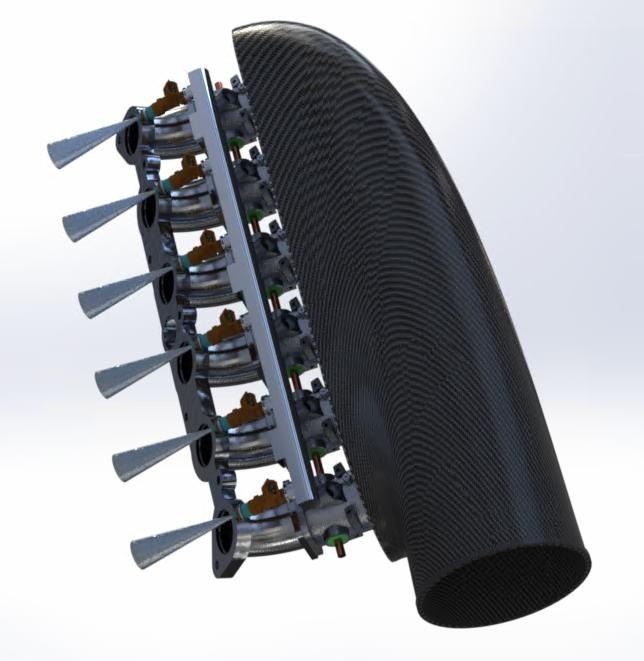

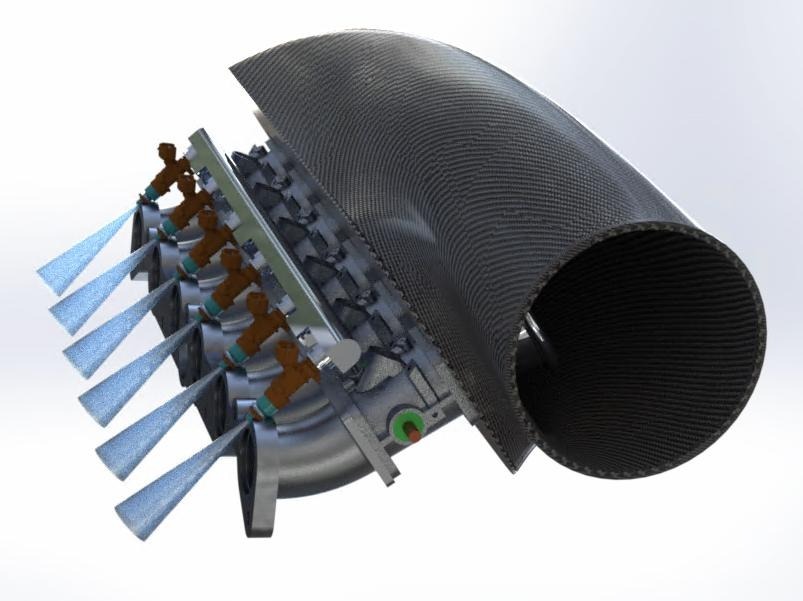

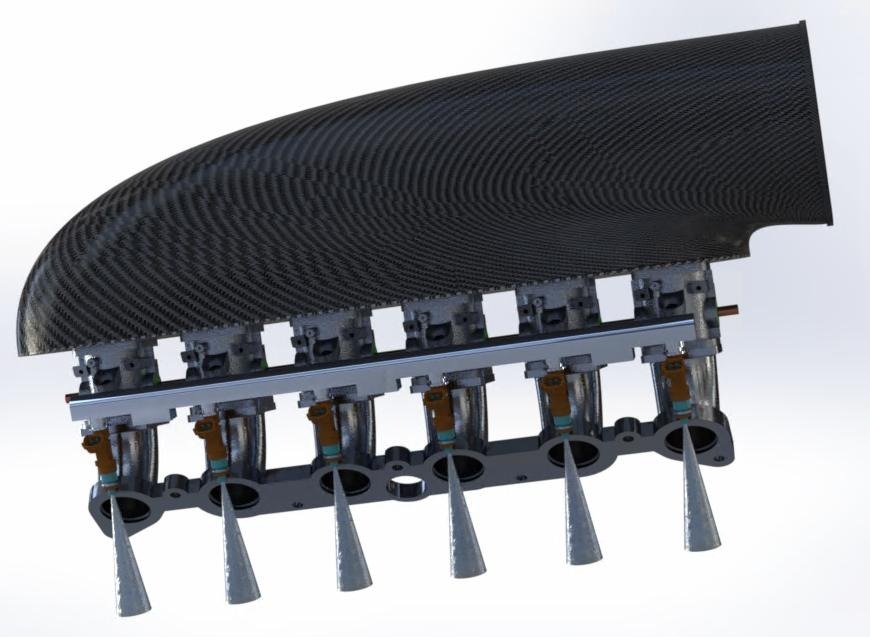

This is our cast ITB kit for the M110 engine. Usually found in a W114 280 and 280C, W116 280S, W123 280 and 280C and W126 280S.

The manifold is cast aluminium with curved and tapered ports. This comes with vacuum ports to supply a MAP sensor and has been designed with a port firing injector using the OEM injector port. The kit is supplied with a specific modern injector that fires fuel directly at the valve. There is an optional secondary injection set with air guided injectors fitted to the extensions to allow higher RPM engines time to atomise the fuel before it gets to the port.

Included is 6 cast individual throttle bodies and if the application can fit them – curved and tapered extensions. The curvature of this kit improves the length available for the inlet tract. The trumpets can be purchased in various lengths up to 60mm to cater for most engine variations.

The optional carbon fiber plenum is our large volume 6 cylinder unit coming in at around 20 litres in capacity. This will be fed by a front intake system with airbox, filter and if space is available an intake trumpet that will sit by the radiator. This will be car specific and available for most models the car came in.

The kit includes a cast manifold, 6x cast ITBs with linkages, 6x Bosch EV12 port injectors, fuel rail and 6x spun trumpets. Carbon plenum and intake system will be confirmed asap.

Make Model Year
Make Model Year
Mercedes W114/W116/W123/W126
