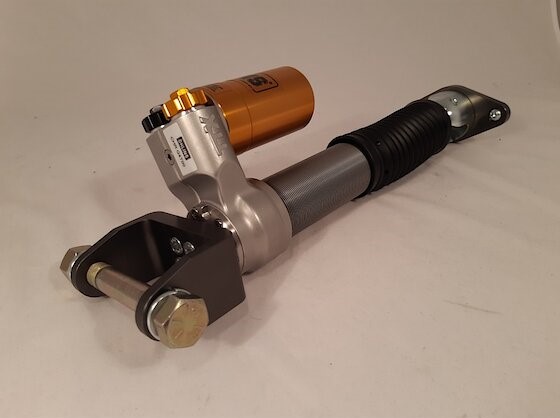

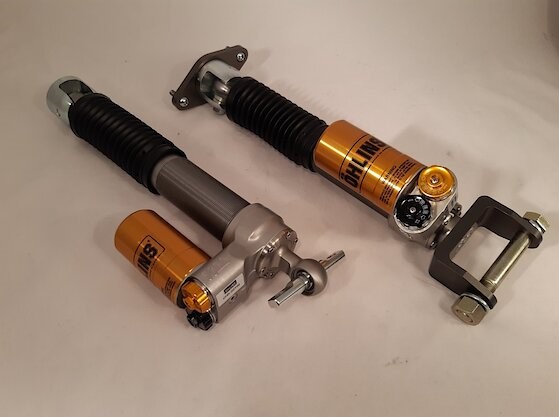

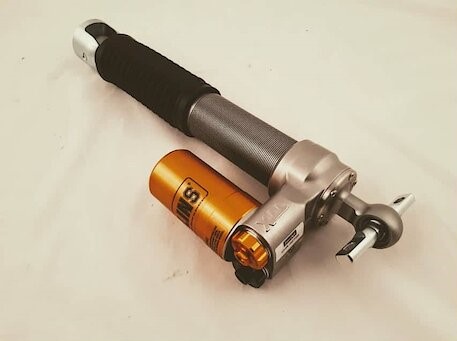

Ohlins Advanced Trackday Chevrolet Corvette C5 CHR GT00

£7,195.00£7,895.00

Chevrolet Corvette C5 Advanced Trackday CHR GT00



Quantity
ohlins-racing-logo

The ultimate choice for track day fans, these complete sets feature Ohlins TTX® twin-tube technology adjustable front struts and rear shock absorbers designed and tuned for the corresponding car model. Each set is designed to be used with model-specific, high-performance Ohlins front and rear top mounts, and front drop links.

Ohlins TTX dampers offer separate adjustability in compression and rebound as well as spring preload to ensure a wide range of settings for track and road performance. The complementary high-performance adjustable (camber and caster) front top mounts, rear top mounts and adjustable drop links are equipped with spherical bearings. Adjustable drop links – also equipped with spherical bearings – provide even greater adjustability for discerning drivers. All sets are designed to accommodate popular wheel sizes and clearances and are tested and validated for use with R-compound tyres.

The TTX46 front and rear dampers are used with great success in the GT4, TCR and WTCR Racing. The 2019 WTCR team championship was won with the same type of dampers.

General Features
  • Twin-Tube technology (TTX)
  • Seperate adjustment for compression and rebound damping
  • Height adjustable
  • Rebuildable
  • Corrosion salt spray tested (ISO 9227)
  • 2 year warranty
Features: Front
  • TTX36 twin-tube shock absorber
  • Separate compression and rebound adjustment
  • Spring preload adjuster
  • Spring rate 140 N/mm
  • Approx. 10 mm lower than standard with recommended setup
Features: Rear
  • TTX36 twin-tube shock absorber
  • Separate compression and rebound adjustment
  • Separate spring preload adjuster
  • Spring rate 140 N/mm
  • Approx. 10 mm lower than standard with recommended setup
Purchased Parts Package
  • 1x Coilover suspension kit incl. springs and mounting parts
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
