Alfa V6 Carbon Fibre Plenum with Intake Pipes, Inlet Tubes & Spark Plug Cover

Select which components you require below:

  • Standard Carbon Fibre Plenum
    Carbon Fibre Plenum with Large Throttle Flange
    Throttle Type
    Carbon Fibre Intake Pipe Kit
    Set of 6 Carbon Fibre Inlet Pipes
Quantity

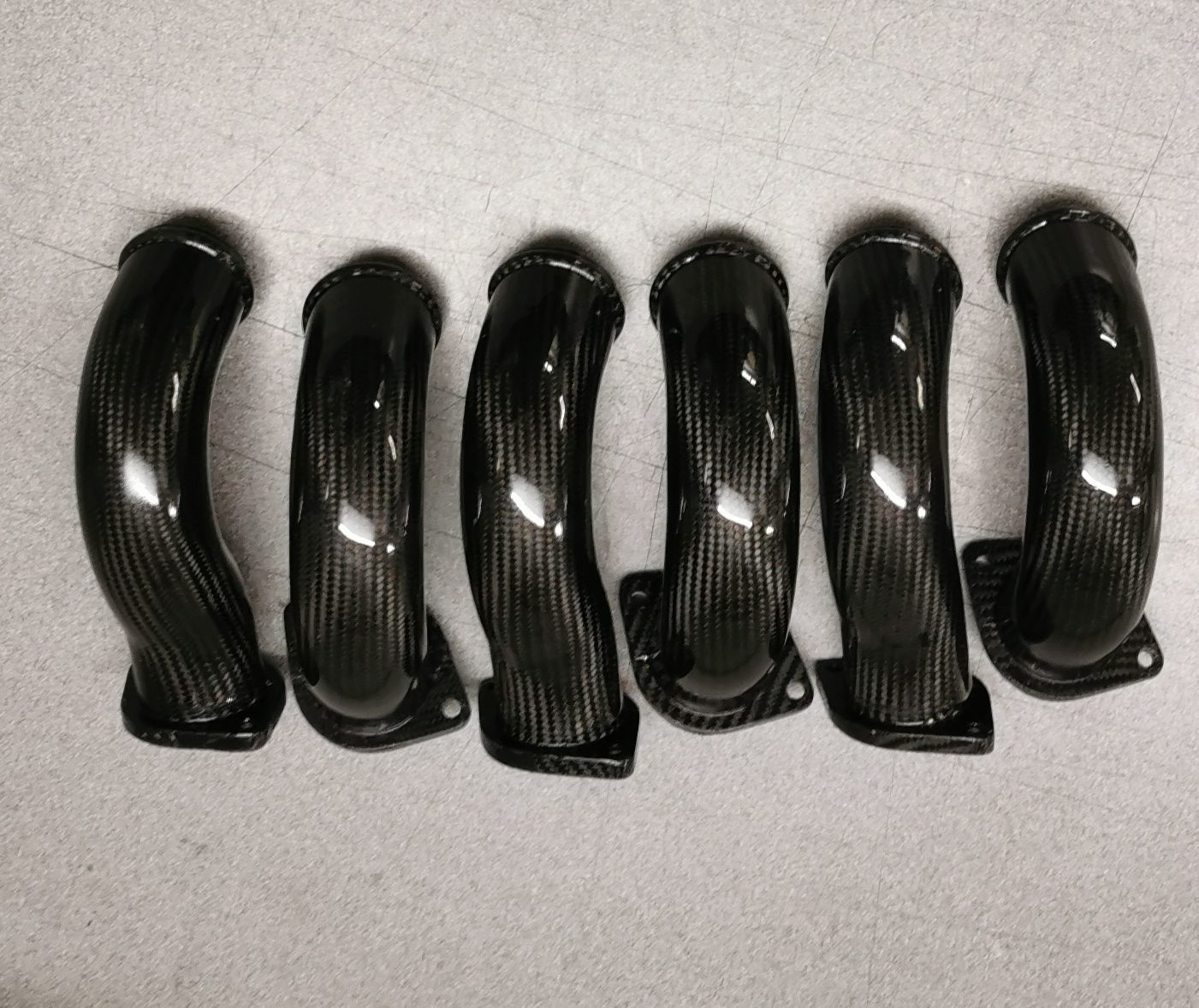

alfa and fiat intake pipes carbon fibre set of 6
Set of 6 Carbon Fibre Inlet Pipes
Carbon Fibre Inlet Pipes
Set of 6, lacquered.

For Alfa V6 with 3.2, large bore ports I/D approx 43mm Due to high demand, please check availability with us before ordering.

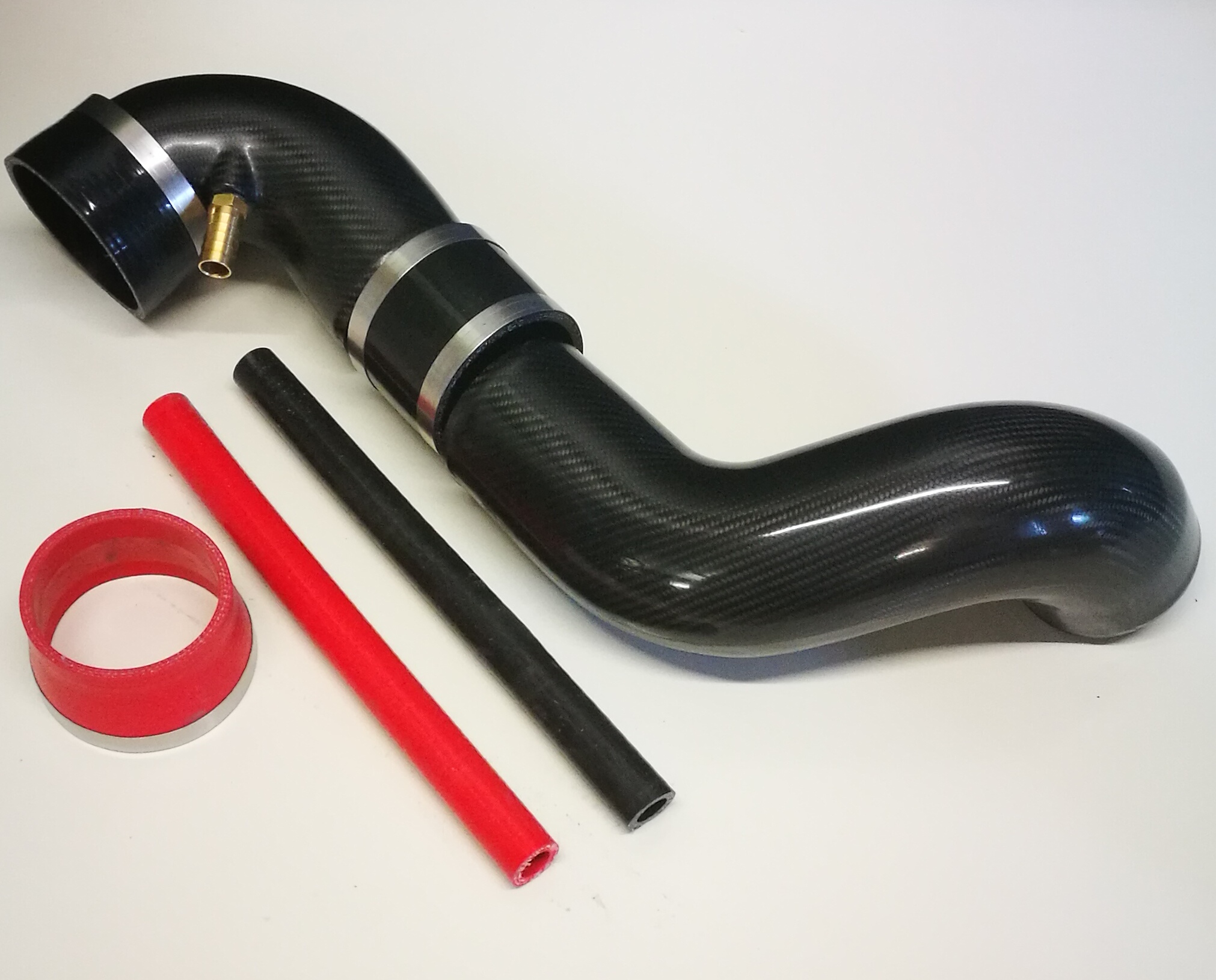

alfa intake pipe kit carbon fibre
Alfa V6 Carbon Fibre Intake Pipe Kit
Includes:
Plenum elbow, with silicone link hoses & 16mm breather hose

Hoses supplied with BLACK – Red also available on request

Please tell us which throttle body you are using as each requires a different diameter hose.

This kit is made to order.
Alfa V6 Carbon Fibre & Plenum with Intake Pipes, Inlet Tubes & Spark Plug Cover
Alfa V6 Plug Cover
Complements the carbon fibre Alfa plenum. Matching spark plug cover in autoclaved 2×2 carbon fibre.

Kit includes:
- Internal trumpets & ECU holder
- Plenum elbow
- Down pipe
- Silicone breather
- Link hoses
- Full stainless clips and fittings
- Built with a specific alloy flange for either standard, Ferrari 360 or Ferrari 430 throttle bodies. The 430 has a 75mm bolt spacing which suits the Bosch unit.

If you do not require the ECU holder please contact us with your order and we will deduct it from the final price.

It is recommend that cars are mapped after fitting this plenum.

Test results:
Before mapping, just by fitting plenum alone on 3 tests with standard and modified cars we have seen over 10 lb ft torque and extra BHP, with mapping up to 25 Lb ft and 18 BHP.

Please confirm your throttle outside diameter, where hose fits, this enables us to supply the correct hose.

- Standard: 73mm
- Ferrari 360: 82mm
- Porsche Cayenne: 84mm
- Ferrari 430: 90mm

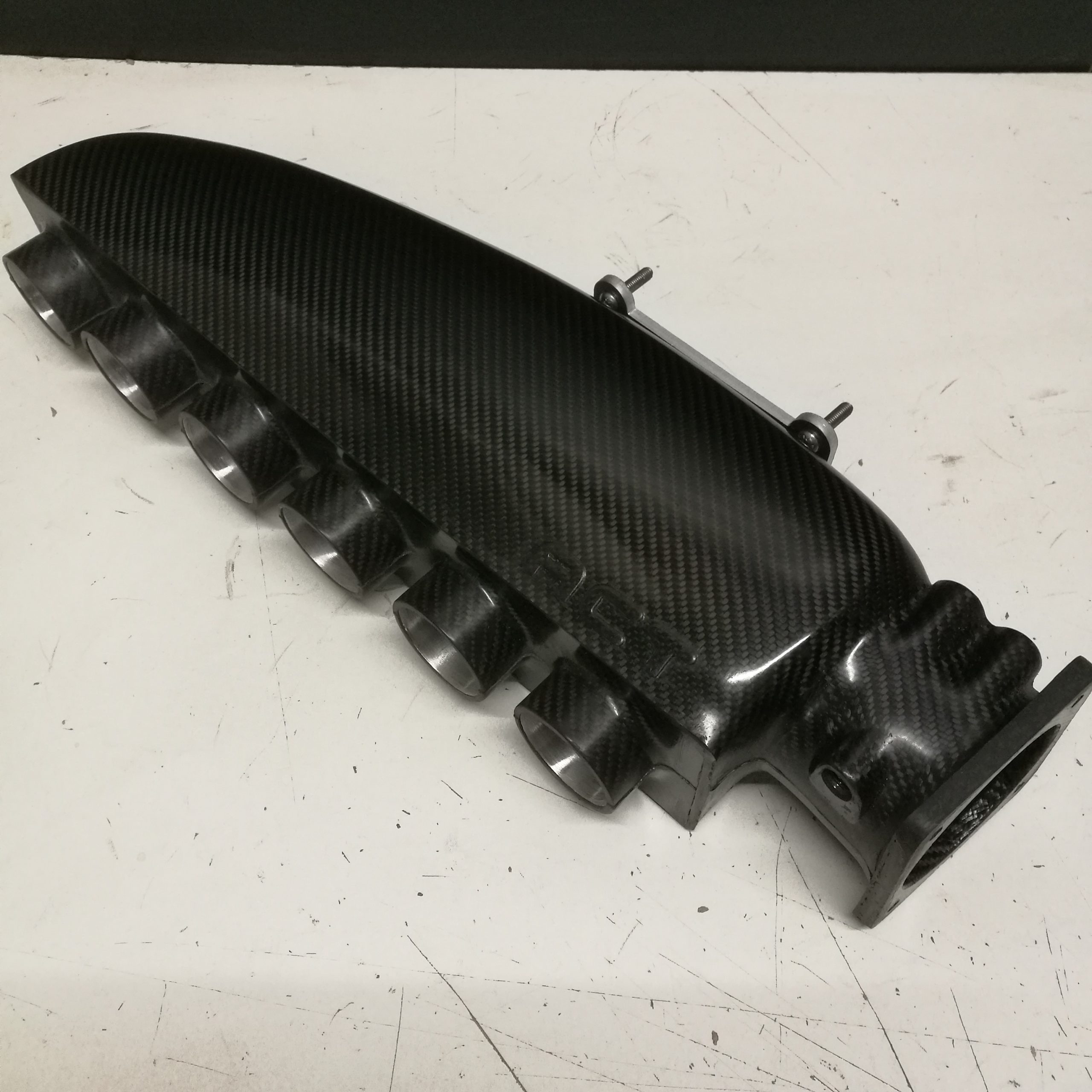

alfa v6 plenum carbon fibre for standard throttle body
Alfa V6 Carbon Fibre Plenum with Large Throttle Flange
Internal trumpets & ECU holder, with flange for:

Ferrari 430 / Porsche Cayenne / Bosch throttle or similar:
4 x 75mm bolt spacing, 80mm I/D.

Please note: The Ferrari 360 throttle requires a smaller flange, let us know if you need this.

If you don’t require the ECU holder, please advise.

We recommend that cars are mapped after fitting this plenum.

Test results:
Before mapping, just by fitting plenum alone on 3 tests with standard and modified cars we have seen over 10 lb ft torque and extra BHP, with mapping up to 25 Lb ft and 18 BHP.

These are generally made to order which means longer lead times.
